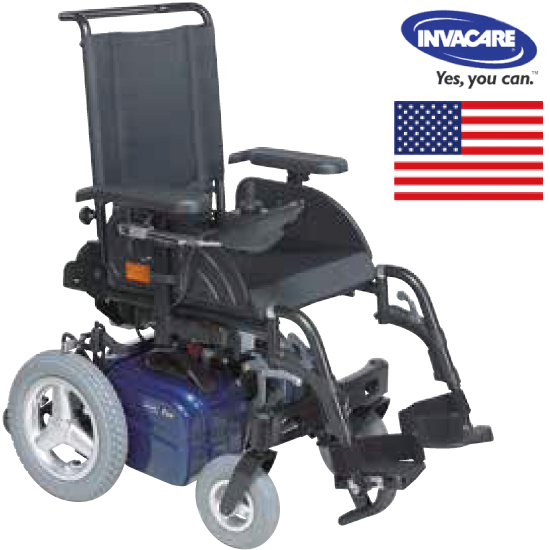

Invacare Fox REAR Wheelchair 後置式驅動電動輪椅

INVACARE® Fox is packed with innovations to make life more manageable for everyday power wheelchair users. Fox has excellent indoor and outdoor capabilities and now, with the integrated Modulite™ seating system, this remarkable powerchair features even more adjustament possibilities to accommodate a wide range of different needs.

Categories: 電動輪椅

特點


驅動位置	後驅 (Rear Wheel Drive)

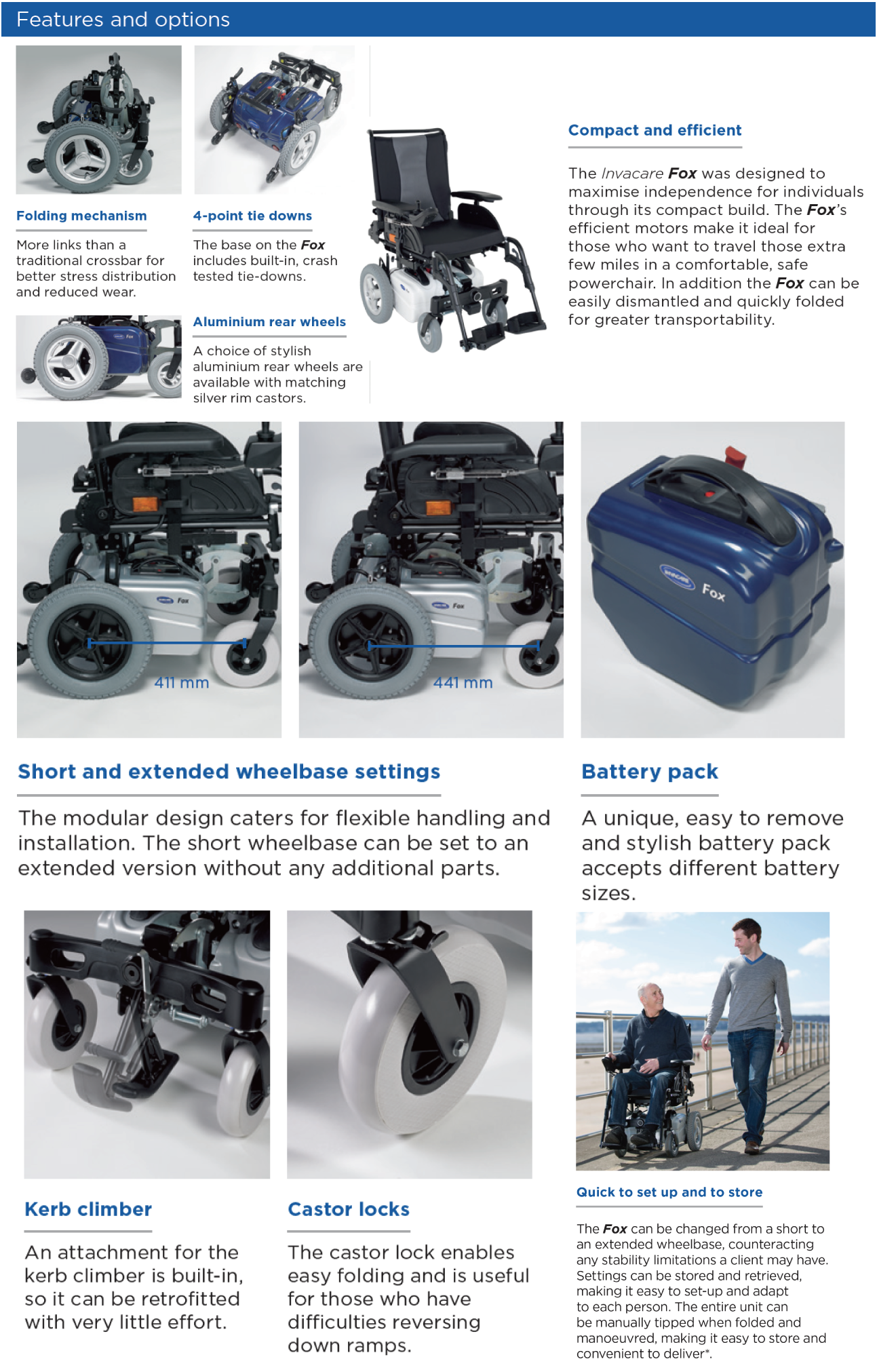

Features and options

規格


Shround colours
	Fox Seat Unit
Seat width	400,450mm
Seat depth	400,460mm
Seat height	480 / 510 ³ mm
Backrest height	490 / 570 mm
Armrest height	230 – 280 mm 205 -255 ¹mm
Length of footrests	350 – 450 mm
Seat angle	0,2,4,6,8°
Backrest angle	85,95,105,115°
Driving unit width ⁴	590⁴ mm
Total height	1010 – 1120⁵mm
Total length inc. footrests ⁴	1015 / 1045 ⁵mm
Total width, folded	540 x 590 x 540 mm ⁴
Total weight	ca. 79 kg ⁵
Max. user weight	127 kg
Battery capacity	ca. 40 Ah
Turning diameter	1600 / 1630 ⁵mm
Max. climbable obstacle height	60,100 mm⁶
Max.safe slope	6°
Motor capactiy	2 x 200 W
Speed	3.6 km/h
Driving range	up to 40 km⁷

References	1. With inrigged armrest 2. By armrest adjustment 3. Without seat cushion at 4° tilt (450 / 480 mm at 0° tilt) 4. Wheelbase 5.Depending on configuration 6. With kerb climber 7. According toISO 7176-4:40 km – 45 Ah(3 / 6 km/h) 32 km – 40 Ah (3 / 6km/h) 27 km – 34 Ah (3 / 6km/h)
品牌	美國??
